Preliminary Camp Layout vs Final Construction Drawings: What Buyers Should Expect

Summary

A preliminary camp layout can be sufficient for early commercial evaluation when its intended use, design basis, assumptions, exclusions, revision and unresolved interfaces are clearly stated. It can support a camp layout quote, option comparison, facility-scope confirmation, initial site-fit discussion and identification of information that must still be supplied.

It is not, by itself, authorization to fabricate modules, construct foundations, install utilities, submit a permit application or occupy the camp. Those decisions require progressively coordinated, project-specific information supported by verified site data, engineering calculations, specifications, schedules, interface details and the approvals required under the contract and local jurisdiction.

The key question is therefore not whether a proposal drawing looks detailed. Buyers should ask what decision the document is intended to support, what information has been verified, who is responsible for each design element and which review gate must be completed before the next activity begins.

Terms such as “reviewed,” “accepted,” “approved,” “for manufacture” and “for construction” do not have one universal meaning. Their contractual effect must be defined through the project’s document-control procedure, responsibility matrix, drawing register and approval workflow.

The Central Distinction: Decision-Useful Is Not Construction-Ready

An early modular camp proposal must be developed before every project variable is final. During inquiry or budgetary quotation, the buyer may know the intended workforce, room standard, required facilities, destination and target occupancy date but still be waiting for a final site survey, geotechnical report, utility study or local authority consultation.

Under those conditions, a preliminary camp layout can still be commercially useful. It allows the project team to test whether the supplier has correctly interpreted the required accommodation, service buildings, circulation concept and broad project scope.

A useful early layout may support:

• Comparison of alternative site arrangements.
• Confirmation of the proposed building and facility schedule.
• Initial discussion of whether the indicated site can accommodate the camp.
• Review of module quantities and principal building dimensions.
• Preliminary discussion of delivery, lifting and installation access.
• Identification of modular-supply, civil-work and utility boundaries.
• Development of a budgetary or conditional quotation.
• Identification of missing information and unresolved design interfaces.

The drawing becomes unsafe to rely on when it is used for a decision beyond its stated maturity. A layout issued to confirm the number and arrangement of accommodation blocks should not quietly become the basis for foundation construction. A buyer’s preference for one option should not automatically become approval to manufacture modules.

The document must therefore identify both what it supports and what it does not support.

What a Preliminary Camp Layout Can and Cannot Establish

What It Can Establish at Quote Stage

A preliminary layout can demonstrate that the supplier has understood the intended project at a level sufficient for commercial discussion.

It may establish:

• The assumed workforce and occupancy basis.
• The proposed number and type of accommodation buildings.
• The principal supporting facilities included in the offer.
• Approximate building footprints and module groupings.
• Indicative roads, access routes and service areas.
• Broad separation of residential, operational and utility functions.
• Potential expansion areas.
• Initial delivery and installation considerations.
• The commercial assumptions used to develop the quotation.

These elements help the buyer determine whether the proposal is responding to the same project described in the inquiry. They also expose scope gaps before technical negotiations become more expensive.

The article should not be read as a general guide to zoning or capacity planning. Buyers reviewing those questions can refer to the workforce camp layout and capacity planning guide.

What It Does Not Prove

A proposal drawing does not necessarily prove that:

• The site boundary has been surveyed.
• Site levels and contours are accurate.
• The proposed arrangement satisfies local planning setbacks.
• Ground conditions are suitable for the assumed foundation concept.
• Flood, drainage or environmental constraints have been resolved.
• Emergency access and fire separation have received local acceptance.
• Structural loading criteria have been finalized.
• Foundations and anchors have been engineered.
• Utility capacities and connection points have been confirmed.
• Electrical and mechanical systems have been calculated.
• Module openings and service penetrations have been coordinated.
• A local architect or engineer has reviewed the design.
• The relevant authority has approved the project.
• The supplier has released the modules for production.
• The site contractor has sufficient information to begin work.

A preliminary layout may contain indicative foundations, services or roads to facilitate discussion. Those indications should be marked according to their maturity and should not be represented as coordinated construction information.

Minimum Information Expected on a Preliminary Camp Layout

A proposal drawing should provide enough information for the buyer to understand the quotation basis without creating a false impression of final engineering.

Document Identity and Status

The drawing should identify:

• Project name.
• Drawing title.
• Document or drawing number.
• Revision identifier.
• Issue date.
• Purpose or status of issue.
• Scale, units and principal dimensions.
• North point or another clear orientation reference.
• Responsible organization and checking information where required.
• Related schedules, specifications or reference documents.

A drawing titled only “Camp Layout” is insufficient if the recipient cannot determine whether it is a concept option, a quotation attachment, a document for review or a construction release.

Commercial and Operational Basis

The layout or accompanying design-basis document should state:

• Workforce or occupancy assumption.
• Room type and occupancy standard.
• Building and facility schedule.
• Module quantities.
• Principal building dimensions.
• Included and excluded facilities.
• Future expansion assumptions.
• Buyer-supplied, supplier-supplied and locally executed works.
• Commercial exclusions that affect site development or final price.

This information is essential when several proposals appear visually similar. One supplier may include dining, laundry and water-treatment buildings while another shows them without pricing them. A third may assume that all foundations and utility networks are locally supplied.

Site-Information Basis

The drawing should identify the source and reliability of the site information used, including:

• Whether the boundary is surveyed, buyer-provided or assumed.
• Whether topographic levels are verified or indicative.
• Known access points.
• Existing services shown on the drawing.
• Delivery or lifting restrictions already identified.
• Known drainage, flood, security or environmental constraints.
• Site information still awaiting confirmation.

An early site plan prepared from a satellite image, sketch or approximate boundary can support option development, but its source should be stated. The buyer should not have to infer whether the dimensions are surveyed.

Engineering Assumptions and Exclusions

Where relevant, the proposal basis should identify:

• Applicable climate and structural criteria known at that stage.
• Provisional wind, snow, seismic, temperature or exposure assumptions.
• Indicative foundation concept.
• Assumed utility sources.
• Indicative connection points.
• Known fire, accessibility or authority-review assumptions.
• Items requiring local professional confirmation.
• Calculations and approvals excluded from the proposal stage.

When the drawing cannot contain all these details, the buyer should request an assumptions-and-exclusions register linked to the drawing revision.

Drawing-Maturity Matrix

Project stage names differ among owners, EPC contractors, consultants and jurisdictions. The following matrix describes the decisions commonly associated with each maturity level, but the contracted document-status system remains controlling.

The buyer should not ask merely whether “final drawings” are included. The contract should specify which deliverables are expected at each gate, which party prepares them, who reviews them and what decision their acceptance permits.

How Modular Camp Drawings Should Mature After Selection

Design-Basis Confirmation

Once a supplier is conditionally selected or awarded the work, quotation assumptions must be converted into controlled design inputs.

The design-basis process should resolve, or formally assign responsibility for resolving:

• Final workforce numbers and workforce profile.
• Room occupancy and accommodation standard.
• Confirmed facility schedule.
• Site boundary and survey datum.
• Topographic levels.
• Geotechnical parameters.
• Climate and structural design criteria.
• Applicable building, fire, accessibility and health requirements.
• Utility sources and capacities.
• Wastewater treatment or discharge strategy.
• Delivery and installation constraints.
• Local submission, registration or professional-review requirements.

The workforce camp proposal requirements guide explains the inputs that support an initial proposal. After award, the objective changes. Each input must be confirmed, assigned to a responsible party or retained as an explicit design hold point.

A design-basis register is more reliable than a collection of emails and meeting minutes. It should show the source, current status, responsible confirmer and impact of later change for each criterion.

Coordinated Engineering

The modular supplier’s factory scope must connect to a project-specific site. Coordinated engineering may therefore involve:

• Module structural design.
• Architectural coordination.
• Civil and foundation design.
• Water and wastewater systems.
• Electrical distribution.
• HVAC systems.
• Fire and life-safety provisions.
• Communications and security.
• Equipment and furniture interfaces.
• Transport, lifting and installation requirements.

The relevant parties may include the modular supplier, owner, EPC contractor, local architect or engineer, civil contractor, MEP contractor, installer and approving authority.

The contract should identify which party coordinates the complete design. Without that allocation, each participant may complete its own work while critical interfaces remain unresolved.

Local Engineering and Authority Review

A modular product that has been used successfully elsewhere is not automatically approved for a new jurisdiction. Site conditions, loading criteria, fire requirements, professional-registration rules and submission procedures may differ.

The project team should determine:

• Which local codes and authority requirements apply.
• Whether a locally registered professional must review or endorse the work.
• Which drawings and calculations must be submitted.
• Whether supplier documents require adaptation.
• Which inspections are required.
• What evidence is needed before occupancy.
• Who responds to authority comments.
• Who bears the cost and schedule impact of required changes.

Local review should begin early enough to influence the design before manufacture. Discovering a local requirement after modules are completed can turn a documentation issue into physical rework.

Approval for Manufacture

Approval for manufacture should be a defined release gate, not a general expression of satisfaction with the proposal.

Before the relevant modules enter production, the package should address the items that would be difficult or expensive to change later.

Depending on scope, this may include:

• Final module dimensions.
• Structural design criteria and calculation status.
• Floor, wall and roof assemblies.
• Internal room arrangement.
• Door and window schedules.
• Fixed equipment positions.
• Plumbing fixture locations.
• Electrical distribution interfaces.
• HVAC equipment and penetrations.
• Fire-rated assemblies and related interfaces.
• External and internal finishes.
• Furniture and equipment schedules within the contracted scope.
• Module-to-module connections.
• Lifting, transport and stacking requirements.
• Approved product submittals.
• Controlled material substitutions.
• Outstanding comments and production hold points.

A release may apply to only part of the project. Standard accommodation modules may be ready while kitchen, medical or utility buildings remain under coordination.

The release record should therefore identify:

• Drawings and documents covered.
• Applicable revisions.
• Module types.
• Quantities.
• Exclusions.
• Remaining hold points.
• Authorized production batch.

A broad signature on a site layout should not be interpreted as approval of every manufacturing detail.

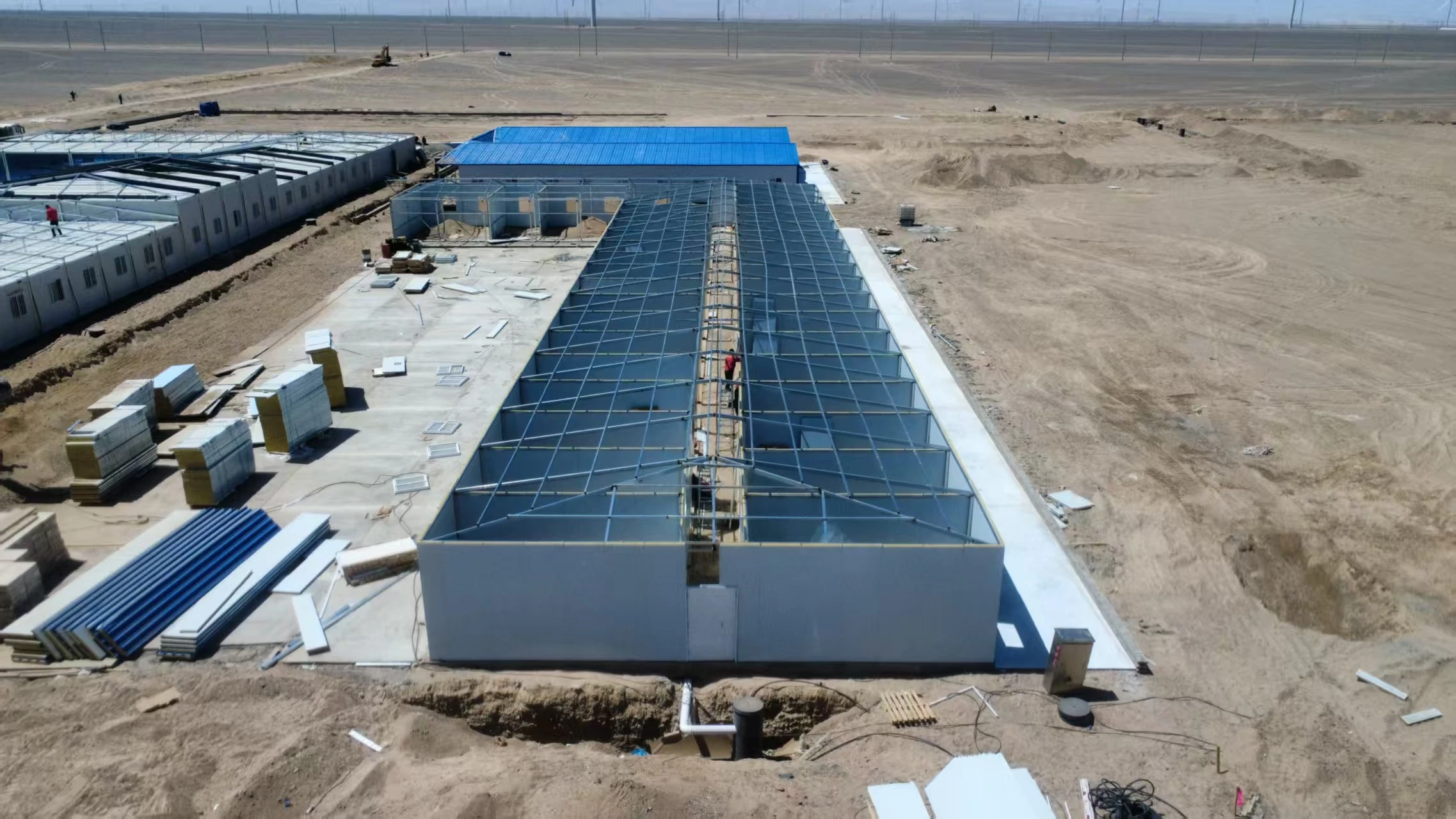

Issue for Construction or Installation

Manufacturing information and site-construction information serve different purposes.

Factory drawings tell the supplier how to produce the modules. Construction and installation drawings tell the field team where the modules go, how they are supported and how they connect to the site.

A construction or installation package may need to include:

• Survey datum and setting-out information.
• Coordinates and dimensions.
• Existing and proposed levels.
• Earthworks and grading.
• Foundation plans and details.
• Anchor types, positions and tolerances.
• Roads, hardstands and walkways.
• Underground and above-ground utilities.
• Water, wastewater and stormwater details.
• Electrical and communications routing.
• Module-to-module connections.
• Module-to-foundation connections.
• Fire-system interfaces.
• Delivery, lifting and placement sequence.
• Temporary stability requirements.
• Inspection and test requirements.
• Commissioning procedures.

Not every item will be issued by the modular supplier. The important point is that the combined package must be complete for the intended work and that each interface must have an identified owner.

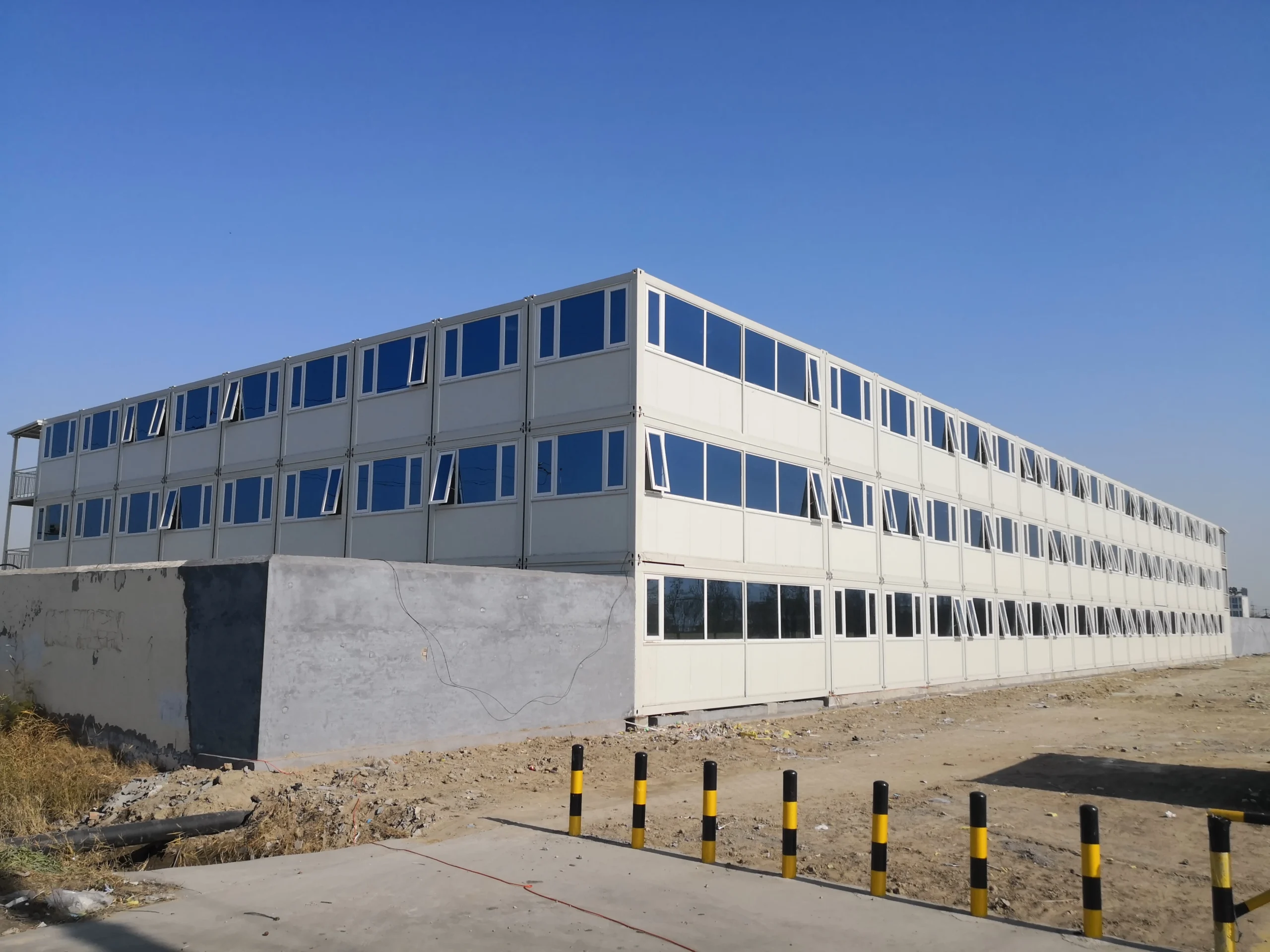

As-Built and Handover Records

The final information package should describe what was installed, not merely what was originally designed.

Depending on the contract, the handover package may include:

• As-built site drawings.
• As-built module drawings.
• Final utility routes and connection points.
• Incorporated site redlines.
• Equipment schedules.
• Operation and maintenance manuals.
• Inspection records.
• Test and commissioning results.
• Required certificates.
• Product warranties.
• Spare-parts information.
• Training records.
• Outstanding-defect records.
• A handover document register.

For relocatable workforce camps, reliable records are particularly valuable. Future teams may need to isolate utilities, replace components, modify buildings or relocate modules. Superseded proposal drawings and unverified site sketches are not adequate lifecycle records.

Drawing Status, Review and Approval Are Different Decisions

A document status should communicate permitted use. It should tell the recipient what the document may be used for and what activities remain prohibited.

The project procedure may use terms such as:

• For information.
• For review.
• For comment.
• Accepted with comments.
• Approved.
• Approved for manufacture.
• Released for production.
• Issued for construction.
• Issued for installation.
• As built.

These labels must not be treated as universal definitions. Their effect depends on the contract, document-control procedure and assigned approval authority.

A buyer should challenge statements such as:

• “The drawing has been approved.”
• “The consultant has reviewed it.”
• “The client signed the plan.”
• “No comments were received.”
• “The authority has seen the project.”

The necessary follow-up questions are:

• Approved by whom?
• For which purpose?
• Under which procedure?
• For which revision?
• Subject to which comments?
• Does the approval authorize manufacture, construction or only continued design development?

Buyer Review Is Not Statutory Approval

A buyer may review a preliminary camp layout to confirm that the facility schedule, room arrangement and operating concept are acceptable. That review does not automatically confirm structural adequacy, code compliance or permit acceptance.

A consultant may review supplier information for conformity with the contract or design intent without assuming responsibility for every manufacturing detail.

An approving authority assesses the matters within its statutory mandate. This is separate from the buyer’s commercial acceptance and the supplier’s internal production approval.

A design may therefore require several distinct decisions:

• Buyer confirmation of operational requirements.
• EPC or consultant review of technical interfaces.
• Supplier authorization to manufacture.
• Local professional endorsement.
• Authority approval.
• Site release for construction.
• Final acceptance for occupancy or operation.

Each decision should be recorded separately.

Document Control and Change Management

A technically correct drawing can still cause failure if the wrong revision reaches the factory or site.

Drawing Registers and Transmittals

The project should maintain a controlled register showing:

• Document number.
• Title.
• Originating organization.
• Revision.
• Status.
• Issue date.
• Transmittal reference.
• Required reviewer.
• Review deadline.
• Current disposition.
• Superseded revisions.

Formal transmittals create a record of what was issued, to whom and for what purpose. They also reduce the risk that an email attachment or messaging-app file becomes an uncontrolled construction instruction.

Comment Resolution

Review comments should be traceable from issue to closure.

Each significant comment should identify:

• Comment reference.
• Drawing and revision reviewed.
• Reviewer’s requirement or question.
• Responsible respondent.
• Proposed resolution.
• Revised document.
• Revision containing the change.
• Closure status.

A clean revised drawing does not prove that all comments were resolved. A comment register allows the buyer to distinguish between closed issues, accepted deviations and unresolved hold points.

Hold Points

A hold point is appropriate when work must not proceed until specified evidence or approval is available.

Examples may include:

• Final site survey.
• Geotechnical parameters.
• Structural calculation approval.
• Local fire review.
• Equipment-selection confirmation.
• Utility-capacity confirmation.
• Approval of a production-sensitive material.
• Foundation inspection.
• Anchor survey.
• Pre-energization testing.

Hold points should identify the responsible closer, required evidence and activity that remains prohibited.

Deviations and Substitutions

A supplier substitution can affect dimensions, weight, certification, fire performance, energy demand, appearance, maintenance or warranty.

The deviation process should record:

• Original requirement.
• Proposed alternative.
• Reason for change.
• Technical comparison.
• Affected drawings and calculations.
• Commercial impact.
• Schedule impact.
• Required approvals.
• Final disposition.

Uncontrolled substitutions are especially risky when authority submissions or coordinated openings were based on the original product.

Changes After Release

Once information has been released for procurement, manufacture or construction, a later revision may affect several workstreams.

A controlled change review should determine:

• Which modules or systems are affected.
• Whether material has already been ordered.
• Whether production has started.
• Whether site work has been completed.
• Which documents require reissue.
• Whether calculations must be updated.
• Whether local approval must be repeated.
• What cost and schedule impact applies.
• How the change will be verified in the field.
• How it will be captured in the as-built record.

Buyer Review-Gate and Responsibility Matrix

The following allocation is illustrative. The exact preparer, reviewer and decision authority must be confirmed in the contract and project document-control procedure.

Commercial comparison should include these responsibilities, not only the module price. The workforce camp buying checklist provides broader supplier and offer evaluation guidance.

Critical Interfaces That Must Be Resolved Before Execution

Site, Foundations and Drainage

A preliminary camp layout may show approximate roads, building positions and foundation zones. Final civil work requires verified dimensions and levels.

The coordinated site package may need to address:

• Survey datum.
• Existing and proposed levels.
• Earthworks.
• Platform preparation.
• Soil parameters.
• Foundation type.
• Allowable movement.
• Anchor design.
• Surface-water routing.
• Flood constraints.
• Erosion protection.
• Emergency access.
• Construction and maintenance access.

A typical supplier foundation detail can support early discussion. It should not automatically be treated as a site-specific design.

Structural Criteria and Module Geometry

Structural engineering depends on project-specific design criteria and the final module arrangement.

The buyer should confirm:

• Applicable loading criteria.
• Module configuration.
• Single-storey or multi-storey arrangement.
• Connection assumptions.
• Transport and lifting conditions.
• Openings that affect structural framing.
• Equipment or tank loads.
• Local professional-review requirements.
• Responsibility for foundations and anchorage.

A change in module grouping, staircase position, corridor configuration or equipment load can affect calculations and connection details.

Utilities and MEP Connections

An early layout may indicate service corridors or plant areas, but final infrastructure requires quantified demands and coordinated interfaces.

The utility basis may need to cover:

• Electrical demand.
• Voltage and frequency.
• Earthing arrangement.
• Potable-water demand.
• Service-water demand.
• Wastewater flow.
• Hot-water production.
• HVAC loads.
• Fuel requirements.
• Fire-water demand.
• Communications.
• Security systems.
• Metering.
• Isolation points.

The schedule should distinguish in-module systems from site distribution and identify who sizes generation, storage, treatment and network infrastructure.

Fire, Accessibility and Local Compliance

The project team should determine:

• Applicable building and fire requirements.
• Required separation between buildings.
• Escape provisions.
• Fire-vehicle access.
• Alarm and suppression interfaces.
• Accessibility requirements.
• Required professional submissions.
• Inspection stages.
• Conditions for occupancy.

These matters cannot be confirmed only by showing a logical arrangement on a proposal drawing. They require project-specific review.

Logistics, Installation and Commissioning

The final package should also support physical execution.

Installation readiness may depend on:

• Verified access routes.
• Delivery sequence.
• Crane positions.
• Lifting plans.
• Foundation acceptance.
• Anchor-position survey.
• Temporary stability.
• Weather sealing.
• Module-to-module connections.
• Utility connection sequence.
• Inspection points.
• Pressure testing.
• Electrical testing.
• Equipment start-up.
• Operator training.
• Completion records.

These requirements may be distributed among drawings, method statements, inspection plans and manuals. The buyer should control the combined release package rather than looking for a single document called “final drawing.”

Practical Review Gates for Buyers

Gate 1: Preliminary Layout and Budgetary Quote

Proceed when the drawing and quotation use the same:

• Workforce basis.
• Facility schedule.
• Module quantities.
• Room assumptions.
• Site-information basis.
• Supply scope.
• Exclusions.

Do not compare prices as equivalent when suppliers have assumed different civil, utility, compliance or installation responsibilities.

Gate 2: Clarified Design Basis

Proceed to detailed engineering when the main project criteria have been confirmed or formally assigned as hold points.

The buyer should know:

• Which inputs are final.
• Which remain provisional.
• Who confirms each outstanding input.
• How later changes will be priced and scheduled.
• Which party coordinates the complete design.

Gate 3: Approval for Manufacture

Proceed only for the modules and revisions specifically identified in the release.

Production-sensitive items should be frozen or formally controlled, including:

• Geometry.
• Openings.
• Penetrations.
• Finishes.
• Structural criteria.
• Equipment interfaces.
• Approved substitutions.

Gate 4: Issue for Construction or Installation

Proceed when the site team has coordinated information for:

• Setting out.
• Levels.
• Foundations.
• Anchors.
• Utilities.
• Connections.
• Installation sequence.
• Inspection and testing.

Approval to manufacture modules is not authorization to construct foundations.

Gate 5: Commissioning and Handover

Proceed to final acceptance or occupancy according to the contract and local requirements after:

• Inspections are completed.
• Systems are tested.
• Commissioning records are available.
• Required authority processes are closed.
• Training is completed.
• As-built documents are submitted.
• Outstanding items are formally recorded.

Common Failure Modes

Civil Works Based on an Early Layout

The civil contractor uses approximate module dimensions or an unverified boundary to set out foundations.

The likely consequences include incorrect spacing, anchor misalignment, utility conflicts, demolition, new foundations and disputed responsibility.

Late Site-Data Changes

A later survey reveals a smaller site, different levels, unsuitable access or drainage constraints.

The arrangement may require redesign, additional earthworks or revised roads. The change should be managed through a formal impact assessment.

Uncoordinated Utility Assumptions

The supplier and site engineer use different voltage, water-pressure, wastewater or fuel assumptions.

The result may be incompatible equipment, undersized infrastructure, site modification and delayed commissioning.

Ambiguous Code Responsibility

The supplier assumes the local consultant will confirm fire and structural requirements, while the consultant assumes the supplier has already completed the review.

The omission may appear during permit review, inspection or occupancy approval, when corrective work is more expensive.

Uncontrolled Supplier Substitutions

A panel, door, fixture or equipment item is replaced without coordination.

The new product may affect openings, weight, fire performance, certification, appearance or maintenance requirements.

Conflicting Revisions

The factory manufactures from one revision while the site contractor builds from another.

Anchors, openings and service connections may not align, even though each party believes it used an approved drawing.

Premature Manufacture

Kitchen equipment, plumbing layouts or HVAC penetrations remain under review when module production begins.

The result may be field cutting, damaged coatings, compromised weatherproofing or avoidable factory rework.

Incomplete As-Built Records

Changes remain only in emails, photographs or handwritten notes.

The operator may later be unable to locate services, confirm installed components or support warranty claims and future modifications.

What Buyers Should Prepare Before Requesting a Preliminary Camp Layout

A supplier can prepare a more useful preliminary camp layout when the buyer provides the best available version of:

• Project location.
• Delivery destination.
• Workforce profile.
• Intended occupancy.
• Facility or building schedule.
• Site boundary, survey or available plan.
• Climate and structural design criteria.
• Known topographic, geotechnical or drainage information.
• Utility sources and assumptions.
• Accommodation and operating standards.
• Target occupancy date.
• Existing layout or BOQ.
• Known local approval requirements.
• Expected division of design, civil, supply, installation and commissioning responsibility.

The information does not need to be final before discussion begins. It does need to be identified as confirmed, provisional, assumed or unknown.

Project teams can consult KUBO modular-building technical and project resources while preparing their design and document requirements.

When the available inputs have been assembled, submit them through the KUBO project inquiry and requirement review to discuss a preliminary camp layout, quotation basis and the drawing-development path required before manufacture, civil works, installation and handover.

Frequently Asked Questions

1. Is a preliminary camp layout enough for a quotation?

A preliminary camp layout can be sufficient for a budgetary or conditional quotation when the capacity basis, facility schedule, module assumptions, scope boundaries and exclusions are clear.

The quotation should identify which quantities are derived from the layout and which elements remain provisional. A fixed execution price may not be reliable when the final survey, foundation conditions, utility infrastructure, structural criteria or local approval requirements remain unknown.

Buyers should therefore compare the assumptions behind each camp layout quote, not only the total price.

2. Can a preliminary camp layout be used for a permit application?

Only when the responsible local professional and approving authority confirm that the package satisfies the submission requirements.

A proposal layout will often lack site-specific calculations, detailed code analysis, foundation design, coordinated MEP information or required professional endorsements. It may support an early authority discussion, but that is different from a formal permit submission.

The contract should identify who prepares the submission, who provides supporting supplier documents and how authority comments will affect scope, price and schedule.

3. Can foundations be constructed from a preliminary layout?

Foundations should not be built from an early layout unless that document has been formally developed and authorized for construction under the project procedure.

Foundation work normally depends on verified setting out, final module loads, ground information, levels, anchor details and assigned design responsibility. A change in module dimensions, corridor spacing, staircase location or utility routing can affect the civil works.

The contractor should receive a controlled construction package tied to the same module geometry approved for manufacture.

4. Can module fabrication begin after the buyer approves the site arrangement?

Not automatically.

Site-layout acceptance may confirm capacity, building positions and operational preference without authorizing production. Fabrication should be linked to a defined approval-for-manufacture gate covering module geometry, structural criteria, materials, finishes, doors, windows, equipment positions and service penetrations.

The release should identify the applicable documents, revisions, module types, quantities and remaining hold points.

5. What information should appear on an early modular camp drawing?

An early drawing should identify its title, number, revision, issue date, purpose, scale, orientation, capacity basis, facility schedule, principal dimensions, assumptions, exclusions and responsibility boundaries.

It should also state whether the site boundary and levels are surveyed, client-provided or provisional. Indicative foundations, utilities and roads should be marked according to their maturity.

Where the drawing cannot contain the full commercial and engineering basis, it should be linked to an assumptions register or design-basis document.

6. Who owns final design responsibility?

The contract determines final responsibility.

Design obligations may be divided among the modular supplier, owner, EPC contractor, local architect or engineer, civil designer, MEP designer and specialist consultants. Responsibility should be allocated by system and deliverable rather than described only as “supplier design” or “local design.”

The contract should also identify who coordinates the interfaces. Buyer or consultant review does not automatically transfer the original designer’s contractual or professional obligations.

7. What does approval for manufacture mean?

Approval for manufacture should mean that specifically identified production information has completed the review and authorization required by the project procedure and may be used to manufacture the defined modules or components.

It does not automatically authorize foundations, site utilities, installation or occupancy.

Because the term is not universal, the contract should define who issues the release, which documents are covered, whether comments remain open and how later changes will be controlled.

8. What is the difference between buyer review and statutory approval?

Buyer review normally addresses contractual, operational or commercial requirements within the buyer’s assigned role.

Statutory approval is issued through the applicable legal or administrative process by an authority having jurisdiction. A buyer may prefer an arrangement that the authority later rejects, while an authority may approve a compliant design that does not meet the buyer’s operational preferences.

Both processes may be required, and neither should be treated as a substitute for the other.

9. How does local engineering review affect modular supplier drawings?

A local engineer may need to verify design criteria, adapt details, prepare foundations, coordinate utilities, endorse documents or incorporate supplier information into a permit package.

The supplier should provide the calculations, drawings, material information and interface data required under its scope. The local professional should identify additional requirements early enough to avoid redesign after manufacture.

Responsibility for responding to local comments should be defined before detailed engineering begins.

10. When are structural and MEP calculations required?

They are required when needed to demonstrate that the relevant design satisfies contractual, engineering, code or authority requirements.

A preliminary quotation may use clearly identified assumptions. Before manufacture and construction, the project normally requires project-specific confirmation of the criteria affecting the work.

Structural calculations may depend on loading, module configuration, transport conditions and foundations. MEP calculations may depend on occupancy, climate, equipment and utility capacity.

11. How should revisions and review comments be controlled?

Every issue should have a unique revision, status, issue date and transmittal.

Comments should be logged, assigned, answered and linked to the revision in which they were incorporated. Superseded drawings should be removed from active factory and site distribution.

Changes after manufacture or construction release should follow a formal impact review covering technical, commercial and schedule consequences.

12. What as-built and handover documents should the buyer receive?

The required package should be defined in the contract and handover register.

Depending on scope, it may include as-built drawings, final equipment schedules, O&M manuals, inspection records, test and commissioning results, certificates, warranties, spare-parts information, training records and outstanding-defect lists.

The buyer should verify that these documents describe the installed camp and use consistent final revisions. For relocatable camps, records covering disconnection, lifting, component replacement and utility interfaces may also be important.

Sources and References

• International Organization for Standardization — ISO 19650-1: Information Management Concepts and Principles
• International Organization for Standardization — ISO 19650-2: Information Management During Asset Delivery
• International Organization for Standardization — Guidance on Documented Information Under ISO 9001
• UK BIM Framework — Guidance Part 2: Processes for Project Delivery
• Royal Institute of British Architects — RIBA Plan of Work
• UK Cabinet Office — The Construction Playbook
• UK Infrastructure and Projects Authority — Transforming Infrastructure Performance: Roadmap to 2030
• FIDIC — Plant and Design-Build Contract: MDB Harmonised Particular Conditions
